2007 Keystone Springdale Specs

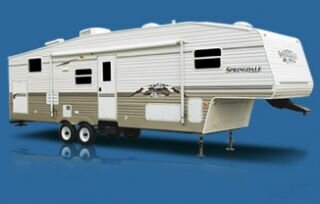

Exterior

Interior

Dinette

Interior

Sink

Skylight Shower Roof

Storage

Pass- through storage

Year:	2007
Manufacturer:	Keystone
Model:	Springdale
RV Type:	Fifth Wheel
Condition:	New

Description

Springdale was designed with one goal-incredible value for your dollar. With Springdale, you don’t have to spend a fortune to have all the conveniences that you want. We use only high-grade materials and top brand-name appliances. We invite you to see for yourself why customers everywhere are choosing Springdale. See you in the great outdoors!

Features

INTERIOR

Innerspring Mattress
Cathedral-style Mortise-and-Tenon Jointed Cabinet Doors
Quality Furniture by Mastercraft®
45”-Wide Dinette Booths in All Slide-Outs
Extra Large Overhead Cabinets
All-Wood Drawers
Large Pedestal Dinette Tables
Porcelain Toilet with foot flush
Overhead Medicine Cabinet with Mirrored Door
12-v. Power Bath Roof Exhaust Vent
Skylight over Tub/Shower
2"x3" Floor Joists with 5/8" Decking

KITCHEN

Residential Kitchen Sink with Deep 60/40 Basins and High-Arch Faucet
Large Overhead Cabinets
Flip-down Silverware Storage under Sink
Wall-Mounted Systems Monitor Pane

APPLIANCES/EQUIPMENT

Dometic® Double Door Refrigerator
Three-Burner, High Output Range with 22" Oven
Suburban Forced-Air DSI Furnace with Thermostat
Space Maker™ 60-gal. Capacity Under-Floor Fresh Water System in a Heated Compartment (Keystone Exclusive)
6-gal. LP Water Heater
Range Hood with 12-v. Light and Exhaust Fan
In-Floor Rigid Heat Ducting
Fire Extinguisher
Smoke Detector
Carbon Monoxide Detector
LP Leak Detector
Water Heater Bypass

EXTERIOR

8' Exterior Width
Hose Carrier Bumper with End Caps
Fiberglass Insulation
Entry Assist Handle
Radius Clamp-Ring Windows
Rubber Roof
Hickory E-Z Open Entry Step
Rain Gutters
Patio Awning

EQUIPMENT OPTIONS

13.5 A/C Non Ducted (179, 189)
13.5 A/C Ducted
15 A/C Ducted (280 & Larger)
AM/FM CD Player & Speakers
Deluxe Entertainment System
TV Antenna & Booster
Cable TV Hookup
Bedroom TV Hook-up
Sink Cover
Range Cover
Microwave
Residential Refer (372,373 Only)
Extra Larger Refer (372,373 Only)
Hardwood Refer Front (NA 372,373)
6 Gal Gas/Elec DSI Water Heater
10 Gal Gas/Elec DSI Water Heater (372,373 Only)
Washer/Dryer Prep w/50 Amp Service (372,373)
Tub Surround
CSA
RVIA (*Go Rving Seal - U.S.)
State Seal: OR, WA, NE

Model	242FWREL	245FWRLLS	249FWBHLS	279FWRLLGL	280FWIKLGL	283FWBHLGL	284FWBHDS
Shipping Weight	6200	6205	6445	7565	7385	7670	8270
Carrying Capacity	1720	1765	1415	2600	2710	2395	1960
Hitch	920	970	860	1365	1185	1265	1265
Length	26' 3	25' 8	26' 0	31' 8	31' 0	32' 2	32' 5
Width	8'	8'	8'	8'	8'	8'	8'
Height	11' 4	11' 4	11' 4	11' 11	11' 11	11' 11	11' 11
Fresh Water	60	60	60	60	60	60	60
Waste Water	34	34	30	34	34	34	34
Gray Water	34	34	64	64	64	64	64
LPG	40	40	40	40	40	40	40
Tire Size	205/75D15C	ST205/75D15	205/75D15C	ST225/75D15	225/75D15D	225/75D15D	225/75D15D
Rim Size	15 x 5	15 x 5	15 x 5	15 x 6	15 x 6	15 x 6	15 x 6
