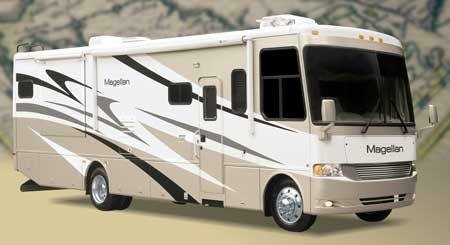

2007 Four Winds Magellan Specs
| Year: | 2007 |
|---|---|
| Manufacturer: | Four Winds |
| Model: | Magellan |
| RV Type: | Class A |
| Condition: | New |
Features
BODY CONSTRUCTION/EXTERIOR
- 3" steel welded floor system
- Vacu-Bond laminated roof, walls and floors with high-density block foam insulation
- Fully-welded tubular aluminum roof and sidewall cage construction
- Choice of exterior graphics/paint packages
- Seamless, slick fiberglass exterior sidewalls
- Fender integrated side docking lights
- One-piece fiberglass front and rear caps
- Air conditioning ductwork molded into roof insulation
- Heated and enclosed utility station with full hook-ups
- Premium one-piece TPO roof - Energy Star approved and labeled
- Fully automatic, hydraulic leveling jacks
- Patio awning
- Roof ladder
- Exterior shower
AUTOMOTIVE/COCKPIT
- 22.5" tires
- Stainless Steel weel liners (Workhorse chassis only)
- Aluminum wheels (Ford chassis only)
- 18" VIP steering wheel (Workhorse chassis only)
- 5,000 lb. trailer hitch
- Dash fans
- Heated, remote exterior mirrors mounted to front cap
- Passenger side workstation with computer hook-ups including a 110-volt outlet and phone jack
- Infiniss™ Leather driver and passenger captain's chairs
- Six-way power driver seat
- Dash mounted generator start switch
- Fog lights
- Back-up monitor with audio
- Oversized AM/FM radio with large buttons, compact disc and cassette player and weather band
INTERIOR
- Full 84" ceiling height
- Residential linoleum flooring (galley, bath, and entry way)
- Two 13,500-BTU roof air conditioners
- Fantastic fan in kitchen
- Oak cabinetry
- Fluorescent lights in the living room
- Raised panel wall cabinets doors with hidden hinges
- Hardware with Brushed Nickel finish
- Day/night shades throughout
GALLEY
- 8-cubic-foot double door refrigerator
- 3-burner high-output cook top
- 30", 1.7 cubic foot over-the-range convection microwave oven
- Large Stainless Steel double bowl sink
- Slide-out pantry (not available with 12-cubic foot refrigerator)
- Full extension metal drawer guides
- Silverware tray
ENTERTAINMENT
- Cable television and satellite prep
- 27" flat screen television in front overhead
BEDROOM/BATHROOM
- Inner spring mattress with memory foam top
- Bedspread and pillow shams
- Attractive hardwood headboard with mirrors
SAFETY/CONVENIENCE
- Entry door with deadbolt lock
- Telephone jack
- Systems Control Center
- Smoke detector
- Fire extinguisher
- LPG detector
- Carbon monoxide detector
- Three-point seatbelts for driver and passenger
ELECTRICAL SYSTEMS
- Guardian RV Quietpact 75G (7500 watt) generator
- 50-amp service
- Marine-type detachable power cord
- 10-gallon gas/electric water heater
- Water heater bypass system
- Second auxiliary battery
STORAGE AREAS
- Large pass-through roto-cast storage compartments
- Deluxe heavily insulated aluminum compartment doors
- In-floor slide system allowing for full height storage compartments
| 2007 Magellan Class A Mo... | 35B | 36E | 36K | 36R | 36Z | 38E |
| Ford Chassis - 6.8L Trit... | V-10 | V-10 | V-10 | V-10 | V-10 | N/A |
| Gross Vehicle Weight (GV... | N/A | N/A | N/A | N/A | N/A | 24,000 |
| Gross Combined Weight (G... | N/A | N/A | N/A | N/A | N/A | 30,000 |
| Workhorse Chassis - 8.1L... | N/A | N/A | N/A | N/A | N/A | V-8 |
| Wheel Base | 228" | 235" | 235" | 235" | 235" | 252" |
| Exterior Length (without... | 35'10" | 37' | 37' | 37' | 37' | 38'10" |
| Exterior Height (with ai... | 12'11" | 12'11" | 12'11" | 12'11" | 12'11" | 12'11" |
| Interior Height | 84" | 84" | 84" | 84" | 84" | 84" |
| Awning Size | 18' | 18' | 19' | 18' | 18' | 20" |
| Fuel (Gallons) | 75 | 75 | 75 | 75 | 75 | 75 |
| LPG (Pounds) | 96 | 96 | 96 | 96 | 96 | 96 |
| Fresh Water (Gallons) | 60 | 60 | 60 | 60 | 60 | 60 |
| Waste Water (Gallons) | 48 | 48 | 48 | 48 | 48 | 48 |
| Black Water (Gallons) | 49 | 49 | 49 | 49 | 49 | 49 |
| Water Heater (Gallons) | 10 | 10 | 10 | 10 | 10 | 10 |
| Furnace (BTUs) | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 | 35,000 |
