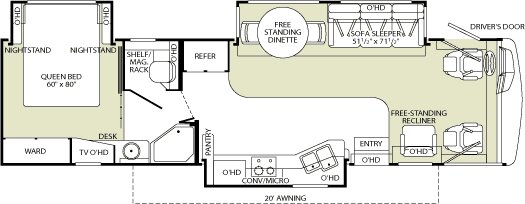

2006 Fleetwood Pace Arrow Specs, Towing Weight, Floorplan + Features
Photo Tour
Available Photos (Click to enlarge)
|
Free Price Quote - No Obligation to Buy
|
| Year: | 2006 |
|---|---|
| Manufacturer: | Fleetwood |
| Model: | Pace Arrow |
| RV Type: | Class A |
| Fuel: | Gasoline |
| Condition: | New |
| Price Range: | $150,000 - $230,000 |
Description
Full-wall-slide has arrived Introduced in Pace Arrow 36D, Fleetwood's patent pending technology offers a full 340 square feet. Never before has a motor coach offered a living space that feels this much like home. 30 inches deep, 84 inches tall and 23 feet long, full-wall-slide is an engineering marvel that creates a space that just feels right.
Features
INTERIOR
- 12 cu. ft. Stainless Steel Dometic® Refrigerator w/Ice Maker
- 20" Flat Screen TV
- 27" Flat Screen TV in Front Overhead
- Alder-Stained Drawer Fronts & Raised Panel Cabinet Doors, Arched Designs, Glass Inserts in Selected Locations
- AM/FM/CD Radio, Satellite Ready
- Deluxe Roller Bearing, Full Extension Drawer Guides
- Driver/Front Passenger Ultraleather™ Captain's Chairs w/Reclining Back/Slide Controls w/Power Driver Seat
- Dual Roof A/C High Efficiency w/Solar Panel and Chill Grills
- DVD Home Theater Sound System
- Large Double Stainless Steel Sink
- Restonic® Deluxe Pillow Top Innerspring Mattress
- Shower Dispenser for Lotion, Shampoo, Soap, Etc.
- Single Lever Shower Control, Brushed Nickel, w/Slide Adjustable Shower Head & Soap Dish
- Whole Coach Water Filtration System
EXTERIOR
- 4-Point Automatic Leveling Jacks
- Awning Rail/Drip Molding (Both Sides)
- Rear Vision Camera w/One-Way Audio
- Rotomolded Polyethylene Luggage Compartments
- Royal Tuff-Ply Radius Roof w/Ducted A/C
- Utility Compartment w/Exterior Shower
- Vacu-bond® Upper/Lower Floors
- Vacu-bond® Walls w/Smooth, High-Gloss Exterior Fiberglass
FLEETWOOD ADVANTAGES
- Complete TuffPEX® Plumbing System
- Tuff-Ply UV-Resistant Heat/Cold Insulated Roofing Technology
- Vacu-Bond® Upper/Lower Floors
- Vacu-Bond® Walls w/Smooth High-Gloss Exterior Tuff-Coat® Fiberglass
| Model | 35G | 36B/Workhorse™ W22 | 36B/Workhorse™ W24 | 36D/Workhorse™ W22 | 36D/Workhorse™ W24 | 37A/Workhorse™ W22 | 37A/Workhorse™ W24 | 37C/Workhorse™ W22 | 37C/Workhorse™ W24 | 38L/Workhorse™ W22 | 38L/Workhorse™ W24 |
| Wheelbase (inches) | 228 | 228 | 228 | 228 | 228 | 242 | 242 | 242 | 242 | 242 | 242 |
| GVWR (lbs) | 22,000 | 22,000 | 24,000 | 22,000 | 24,000 | 22,000 | 24,000 | 22,000 | 24,000 | 22,000 | 24,000 |
| Front GAWR (lbs) | 8,000 | 8,000 | 9,000 | 8,000 | 9,000 | 8,000 | 9,000 | 8,000 | 9,000 | 8,000 | 9,000 |
| Rear GAWR (lbs) | 14,500 | 14,500 | 15,500 | 14,500 | 15,500 | 14,500 | 15,500 | 14,500 | 15,500 | 14,500 | 15,500 |
| Base Weight (lbs) | 18,600 | 19,100 | 19,200 | 19,100 | 19,200 | 18,600 | 18,700 | 19,500 | 19,600 | 19,550 | 19,650 |
| GCWR (lbs) | 26,000 | 26,000 | 30,000 | 26,000 | 30,000 | 26,000 | 30,000 | 26,000 | 30,000 | 26,000 | 30,000 |
| Tongue Weight (lbs) | 500 | 500 | 600 | 500 | 600 | 500 | 600 | 500 | 600 | 500 | 600 |
| Engine Displacement (Lit... | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 | 8.1 |
| Hitch Rating Weight (lbs... | 5,000 | 5,000 | 6,000 | 5,000 | 6,000 | 5,000 | 6,000 | 5,000 | 6,000 | 5,000 | 6,000 |
| Engine | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ | 8.1L Vortec™ |
| Horsepower | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP | 340 HP |
| Torque | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM | 455 lb.-ft. @ 3200 RPM |
| Transmission | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series | 5-Speed Automatic w/Overdrive - Allison® 1000 Series |
| Alternator Amps | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp | 145 Amp |
| Overall Length | 35' 8" | 36' 2" | 36' 2" | 36' 2" | 36' 2" | 37' 8" | 37' 8" | 37' 8" | 37' 8" | 38' 2" | 38' 2" |
| Overall Height (with A/C... | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" | 12' 10" |
| Overall Width (maximum) | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" | 102" |
| Interior Height (maximum... | 84" | 84" | 84" | 84" | 84" | 84" | 84" | 84" | 84" | 84" | 84" |
| Interior Width (maximum) | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" | 96" |
| Fresh Water Holding Tank... | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| Gray Water Holding Tank ... | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 | 58 |
| Black Water Holding Tank... | 47 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 | 42 |
| Appliance Propane Tank (... | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
| Water Heater Tank (gal) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
| Fuel Capacity (gal) | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 | 75 |
- GVWR (Gross Vehicle Weight Rating): Means the maximum permissible loaded weight of the motor home. The GVWR is equal to or greater than the sum of the unloaded vehicle weight plus the net carrying capacity.
- GAWR (Gross Axle Weight Rating): Means the maximum permissible loaded weight a specific axle is designed to carry.
- Base Weight: Means the estimated weight of the motor home without fuel, options, water, cargo or passengers.
- GCWR (Gross Combined Weight Rating): Means the value specified by the motor home manufacturer as the maximum allowable loaded weight of this motor home with its towed vehicle. Towing and braking capacities may differ. Refer to Fleetwood and chassis manufacturer manuals for complete information.
- The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing.
- Length taken from front bumper to rear bumper (excludes accessories).
- Excludes safety equipment and awnings.
- Tank Manufacturer's listed water capacity (WC). Actual LPG capacity is 80% of water listing as required by the safety code.
