| Year: | 2005 |
|---|---|
| Manufacturer: | National RV |
| Model: | Dolphin LX |
| RV Type: | Class A |
| Fuel: | Gasoline |
| Condition: | New |
| Price Range: | $110,000 - $174,000 |
Description

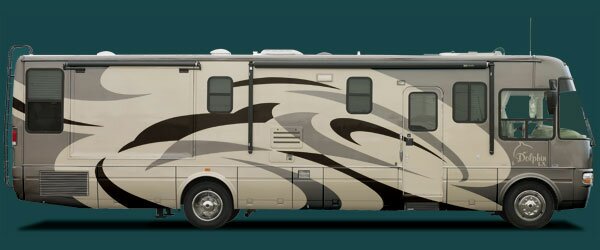

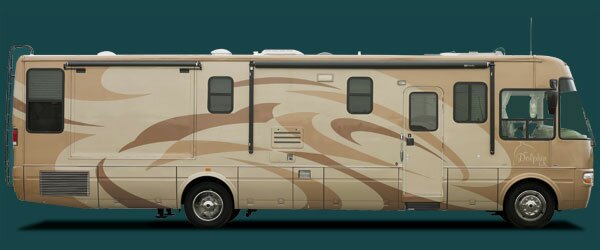

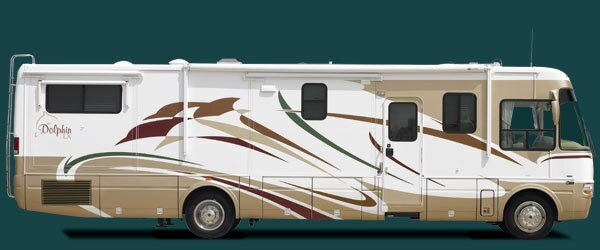

Dolphin LX combines elements of Dolphin's new vinyl graphics package with generous swaths of rich Sikkens paint. This year the paint features are more adventurous, breaking above and below the beltline-and high on the coach's mask-to blend effortlessly with the vinyl graphics and create a striking overall graphics package with the visual appeal of a luxury motorcoach.
| WEIGHT RATINGS (IN LBS.) | 6320 | 6342 | 6355 | 6375 | 6376 |
| Gross Vehicle Weight Rat... | 22,000 | 22,000 | 24,000 | 24,000 | 24,000 |
| Gross Combined Weight Ra... | 26,000 | 26,000 | 30,000 | 30,000 | 30,000 |
| Front Gross Axle Weight ... | 8,000 | 8,000 | 9,000 | 9,000 | 9,000 |
| Rear Gross Axle Weight R... | 15,000 | 15,000 | 15,500 | 15,500 | 15,500 |
| Unloaded Weight Rating (... | 18,910 | 19,400 | 19,870 | 20,840 | 20,440 |
| Maximum Carrying Capacit... | 3,090 | 2,600 | 4,130 | 3,160 | 3,560 |
| Cargo Carrying Capacity ... | 1,646 | 1,156 | 2,686 | 1,782 | 2,182 |
| MEASUREMENTS | 6320 | 6342 | 6355 | 6375 | 6376 |
| Wheelbase | 208" | 228" | 228" | 242" | 242" |
| Overall Length | 33' 9" | 34' 9" | 36' 0" | 37' 2" | 37' 2" |
| Overall Height (incl. la... | 11' 10" | 11' 10" | 11' 10" | 11' 10" | 11' 10" |
| Overall Height (with sat... | 12' 6" | 12' 6" | 12' 6" | 12' 6" | 12' 6" |
| Interior Height | 79-1/2" | 79-1/2" | 79-1/2" | 79-1/2" | 79-1/2" |
| Interior Width | 98-1/2" | 98-1/2" | 98-1/2" | 98-1/2" | 98-1/2" |
| Exterior Width | 102" | 102" | 102" | 102" | 102" |
| TANK CAPACITIES (IN GAL) | 6320 | 6342 | 6355 | 6375 | 6376 |
| Water Heater Capacity | 10 | 10 | 10 | 10 | 10 |
| Gray Tank Capacity | 45 | 60 | 60 | 60 | 60 |
| Black Tank Capacity | 45 | 47 | 47 | 42 | 50 |
| Fresh Water Capacity (in... | 80 | 80 | 80 | 72 | 72 |
| LP-Gas (volume w.c.) | 24.2 | 24.2 | 24.2 | 24.2 | 24.2 |
| Fuel Tank | 75 | 75 | 75 | 75 | 75 |
